智能四角加压研磨机 NPL-2000D

NPL-2000D研磨机是一款多功能智能四角加压研磨机,独特逆向而行的公转自转合成运动,提供高效稳定磨切力。其综合性能优于同类产品。本机适用于光纤跳线、光纤精密组件的端面研磨,可用于产品研发试产及可行性验证,批量研磨光纤制品。多组数据存储功能,提供经验传承式研磨参数管理,减少研磨成品率对技术经验的过度依赖。定制化研磨夹具,为研磨设备提供更多高效可靠的研磨方案。

智能四角加压研磨机, NPL-2000D

Intelligent Square Optical Fiber Polishing Machine



NPL-2000D研磨机是一款多功能智能四角加压研磨机,独特逆向而行的公转自转合成运动,提供高效稳定磨切力。其综合性能优于同类产品。本机适用于光纤跳线、光纤精密组件的端面研磨,可用于产品研发试产及可行性验证,批量研磨光纤制品。多组数据存储功能,提供经验传承式研磨参数管理,减少研磨成品率对技术经验的过度依赖。定制化研磨夹具,为研磨设备提供更多高效可靠的研磨方案。

The NPL-2000D is a multi-functional, intelligent square pressurised polishing machine with a unique reversal of the circular motion to provide efficient and stable polishing and cutting performance. Its comprehensive performance is better than similar products. The machine is suitable for endface grinding of fibre optic patch cords and fibre optic precision components, and can be used for product development trial production and feasibility verification. Multi-group data storage function, providing experience, inherited polishing parameter management, reducing the over-reliance on technical experience for polishing yield. Customised polishing fixtures provide more efficient and reliable polishing solutions for polishing equipment.

型号:NPL-2000D

Model: NPL-2000D



产地:中国深圳

Origin: Shenzhen, China



主要特性:

  • 嵌入式人机界面设计,PLC控制系统;
  • 变频电机动力引劲,缓起缓停,减速不减力;
  • 内置已验证研磨参数,最多存储20组参数;
  • 减少研磨成品率对技术经验的过度依赖;
  • 研磨机压力手动可调;
  • 转速、时间数位式量化控制;
  • 可顺时针、逆时针旋转,精准管控磨切量;
  • 可一次性研磨36至72个光纤连接器;
  • 可按需要编程设置1至6步研磨。



Key Feature:

  • Built-in human-machine interface design, PLC control system;
  • Inverter motor power priming, gentle starting and stopping, deceleration without loss of power;
  • built-in proven polishing parameters, up to 20 sets of parameters stored;
  • Reduced over-reliance on technical experience for polishing yield;
  • Polishing pressure is manually adjustable;
  • digital quantitative control of speed and time;
  • clockwise and counterclockwise rotation for precise control of the polishing volume;
  • Polishing of 36 to 72 fiber optic connectors at one time.
  • 1 to 6 polishing steps can be programmed as required.



应用范围:

  • 研磨SC FC ST E2000 LC MU UPC和APC端面;
  • 广泛用于光纤连接器陶瓷插芯、MPO插芯研磨;
  • 迷你MT插芯、多芯光纤LENS及JUMPER研磨;
  • 使用定制夹具可研磨光纤阵列及玻璃毛细管;
  • SMA905、D80及其它金属连接器研磨;
  • PMMA塑料光纤及HFBR连接器研磨;
  • 也可用于300微米石英裸纤研磨,传光、传像医疗光纤研磨;



Applications.

Polishing of SC FC ST E2000 LC MU UPC and APC end faces.

Widely used for polishing ceramic ferrules and MPO ferrules of optical fiber connectors.

Polishing of mini-MT ferrules, multi-core fiber LENS and JUMPERs.

Polishing of fiber arrays and glass capillaries using custom fixtures.

Polishing of SMA905, D80 and other metal connectors.

Polishing of PMMA plastic fibers and HFBR connectors.

Polishing bare 300-micron quartz fibers, optical and optical medical fibers.

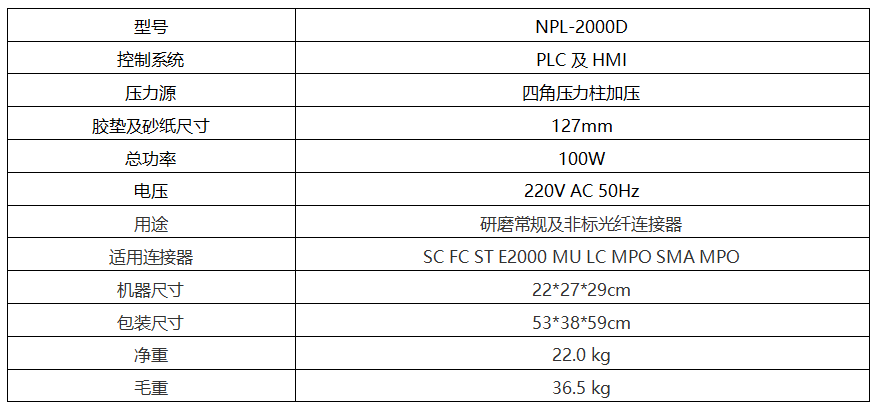

技术参数:

型号 NPL-2000D
控制系统 PLC及HMI
压力源 四角压力柱加压
胶垫及砂纸尺寸 127mm
总功率 100W
电压 220V AC 50Hz
用途 研磨常规及非标光纤连接器
适用连接器 SC FC ST E2000 MU LC MPO SMA MPO
机器尺寸 22*27*29cm
包装尺寸 53*38*59cm
净重 22.0 kg
毛重 36.5 kg



Technical parameters.

Model NPL-2000D
Control system PLC and HMI
Pressure source Square pressure column pressurisation
Pad and sandpaper size 127mm
power 100W
Voltage 220V AC 50Hz
Application Polishing of conventional and non-standard fibre optic connectors
Suitable connectors SC FC ST E2000 MU LC MPO SMA MPO
Machine size 22*27*29cm
Package size 53*38*59cm
Net weight 22.0 kg
Gross weight 36.5 kg

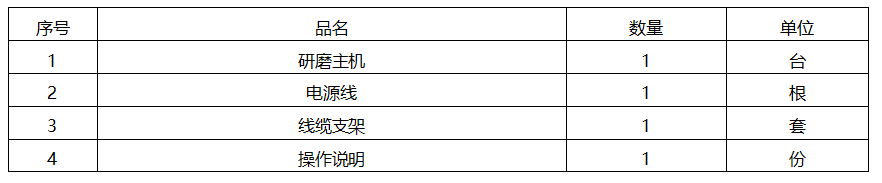

标准配置:

序号 品名 数量 单位
1 研磨主机 1
2 电源线 1
3 线缆支架 1
4 操作说明 1



Standard configuration.

No. Product Quantity Unit
1 Polishing machine 1 set
2 Power cable 1 piece
3 Cable holder 1 set
4 Operating instructions 1 piece

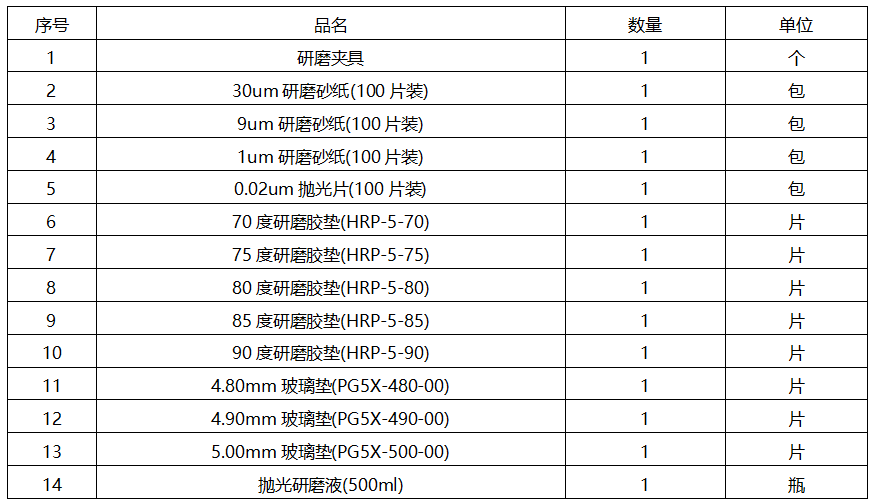

选配产品及耗材:

序号 品名 数量 单位
1 研磨夹具 1
2 30um研磨砂纸(100片装) 1
3 9um研磨砂纸(100片装) 1
4 1um研磨砂纸(100片装) 1
5 0.02um抛光片(100片装) 1
6 70度研磨胶垫(HRP-5-70) 1
75度研磨胶垫(HRP-5-75) 1
80度研磨胶垫(HRP-5-80) 1
85度研磨胶垫(HRP-5-85) 1
90度研磨胶垫(HRP-5-90) 1
7 4.80mm玻璃垫(PG5X-480-00) 1
4.90mm玻璃垫(PG5X-490-00) 1
5.00mm玻璃垫(PG5X-500-00) 1
8 抛光研磨液(500ml) 1

备注:研磨夹具型号繁多,请参考产品手册及官网产品信息;研磨耗材因研磨产品材质差异较大,请咨询我司销售人员。



Optional products and consumables:

No. Product Quantity Unit
1 Polishing fixture 1 piece
2 30um polishing film (100 pieces) 1 pack
3 9um polishing film (100 pieces) 1 pack
4 1um polishing film (100 pieces) 1 pack
5 0.02um polishing film (100 pieces) 1 pack
6 70 degree polishing rubber pad (HRP-5-70) 1 piece
75 degree polishing rubber pad (HRP-5-75) 1 piece
80 degree polishing rubber pad (HRP-5-80) 1 piece
85 degree polishing rubber pad (HRP-5-85) 1 piece
90 degree polishing rubber pad (HRP-5-90) 1 piece
7 4.80mm Polishing Glass Pad (PG5X-480-00) 1 piece
4.90mm Polishing Glass Pad (PG5X-490-00) 1 piece
5.00mm Polishing Glass Pad (PG5X-500-00) 1 piece
8 Polishing liquid (500ml) 1 bottle

Note: Please refer to the product manual and the product information on the website for a variety of polishing fixture models; please consult our sales staff for polishing consumables as the material of the polished product varies greatly.
