LC UPC Multi Mode Connector LC-UPC-MM

All components of/and the final product are designed and tested to conform the requirements of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2nd Ed., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G.651 or IEC60793-2-10 A1b or ITU-T G.652 (depending on fiber), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.

LC UPC Multi Mode Connector LC-UPC-MM

Model: LC-UPC-MM

Place of origin: Shenzhen

Key Features:

1, Low insertion loss and back reflection loss;

2, Ferrule end surface predomed;

3, Precision anti-rotation key and corrosion resistant body;

4, UL-rated plastic housing;

5, Boots in a variety of colors;

6, Telcordia style boots;

7, Free-floating ceramic ferrule.

Parameters of LC series:

Paramter

Singlemode(PC)

Singlemode(APC)

Multimode   (PC)

Insertion   loss

≤0.2   dB

≤0.2dB

≤0.2dB

Return   Loss

≥50   dB

≥65   dB

≥35   dB

Operating   Temperature

-40°C   to +80°C

-40°C   to +80°C

-40°C   to +80°C



Availability:

The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

Clips are available for duplex connectors.

Housing kits without ferrule are available.

 Applications:

1, CATV

2, Active device termination

3, Telecommunicationnetworks

4, Metro

5, Local Area Networks (LANs)

6, Data processing networks

7, Test equipment

8, Premise installations

9, Wide Area Networks (WANs)

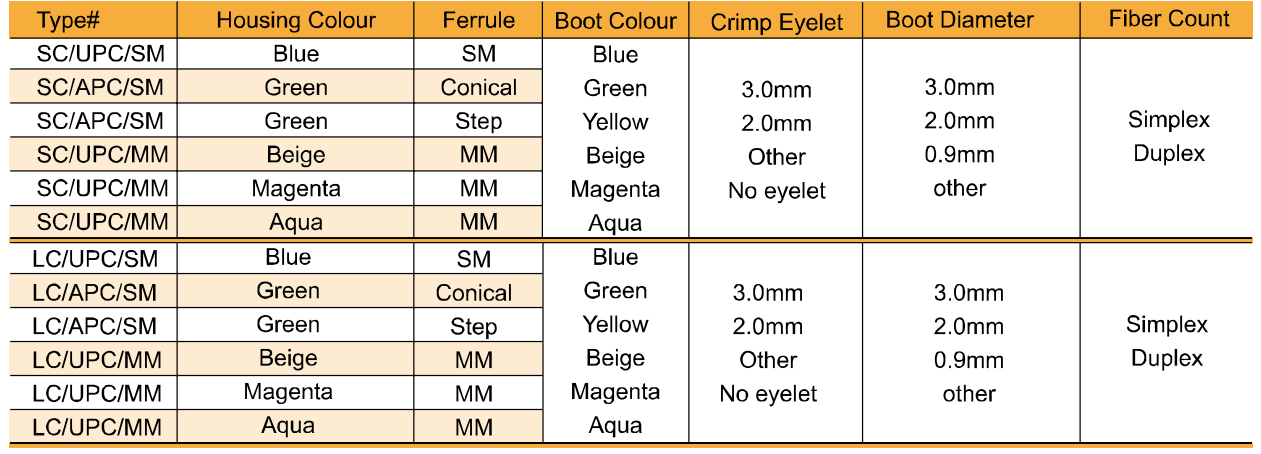

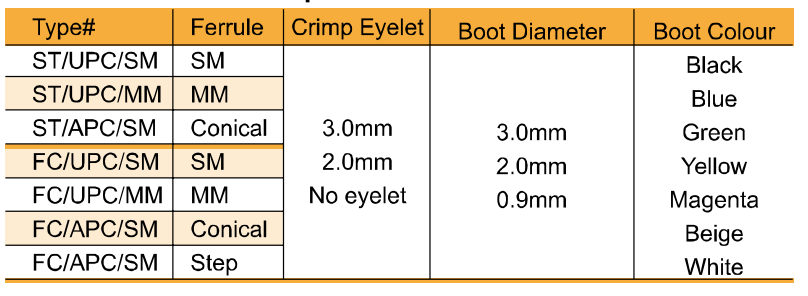

Follows are for your choice:
